Cloud Detection & Response on AWS

Overview

ARMO Cloud Detection & Response (CDR) for Amazon Web Services delivers continuous threat detection for your AWS environment. ARMO deploys a lightweight log-ingestion stack in your AWS account that consumes AWS CloudTrail logs, evaluates events against ARMO's CEL-based detection rules, and forwards matched security alerts to the ARMO Platform, where they appear as Runtime Incidents.

AWS CDR uses the same detection rule engine as ARMO's cloud detection capabilities across other cloud providers, so detections, incident workflows, and custom rules behave consistently across your environments.

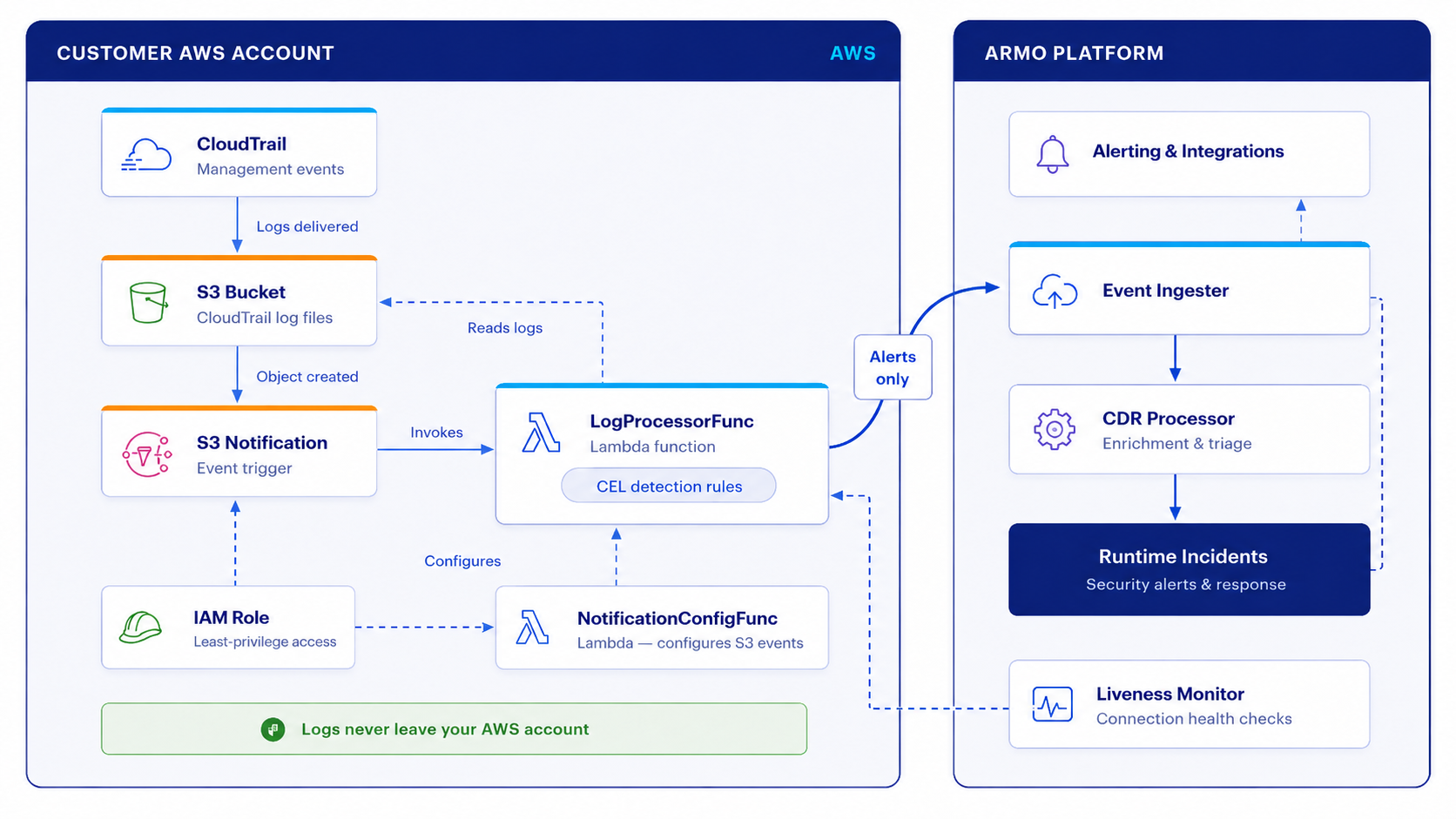

How It Works

1. From the ARMO onboarding wizard, you start the AWS Cloud Detection & Response connection flow.
2. ARMO opens a pre-configured AWS CloudFormation stack in your AWS account.
3. The CloudFormation stack deploys the AWS resources required to process CloudTrail events.
4. CloudTrail logs are collected from the configured trail log location.
5. Events are evaluated against ARMO's CEL-based detection rules.
6. Only matched alerts, with the required event context, are sent to the ARMO Platform and surfaced as Runtime Incidents.

What ARMO Detects

ARMO's detection rules cover suspicious and high-risk activity in your AWS environment, for example:

• IAM policy or role changes that may introduce privilege escalation paths
• Creation or modification of access keys
• Root account usage or changes to authentication settings
• Security group rules opened to the internet, such as 0.0.0.0/0
• S3 bucket policy changes or public access configuration changes
• CloudTrail changes, deletion, or logging tampering
• Unusual or unauthorized AWS API activity patterns

Detection rules are written in CEL (Common Expression Language) and managed under Policies → Threat Detection in the ARMO Platform. You can also author your own rules. See Custom Rules.

Log Coverage & Cost

The CDR components run in your AWS account, so related AWS service costs are billed to your AWS account. Depending on your configuration, this may include CloudTrail, S3, Lambda, CloudWatch Logs, and related AWS resources.

Prerequisites

High-Level Flow

1. In the ARMO Platform, initiate the AWS onboarding flow and enable Cloud Detection and Response.
2. Choose the AWS region where the CDR stack should be deployed.
3. Enter a display name and provide the CloudTrail details.
4. Launch the AWS CloudFormation stack from the ARMO wizard.
5. Create the stack in AWS and wait for the deployment to complete.
6. Return to ARMO and verify that the AWS account status changes to Connected.

Detailed Step-by-Step Onboarding

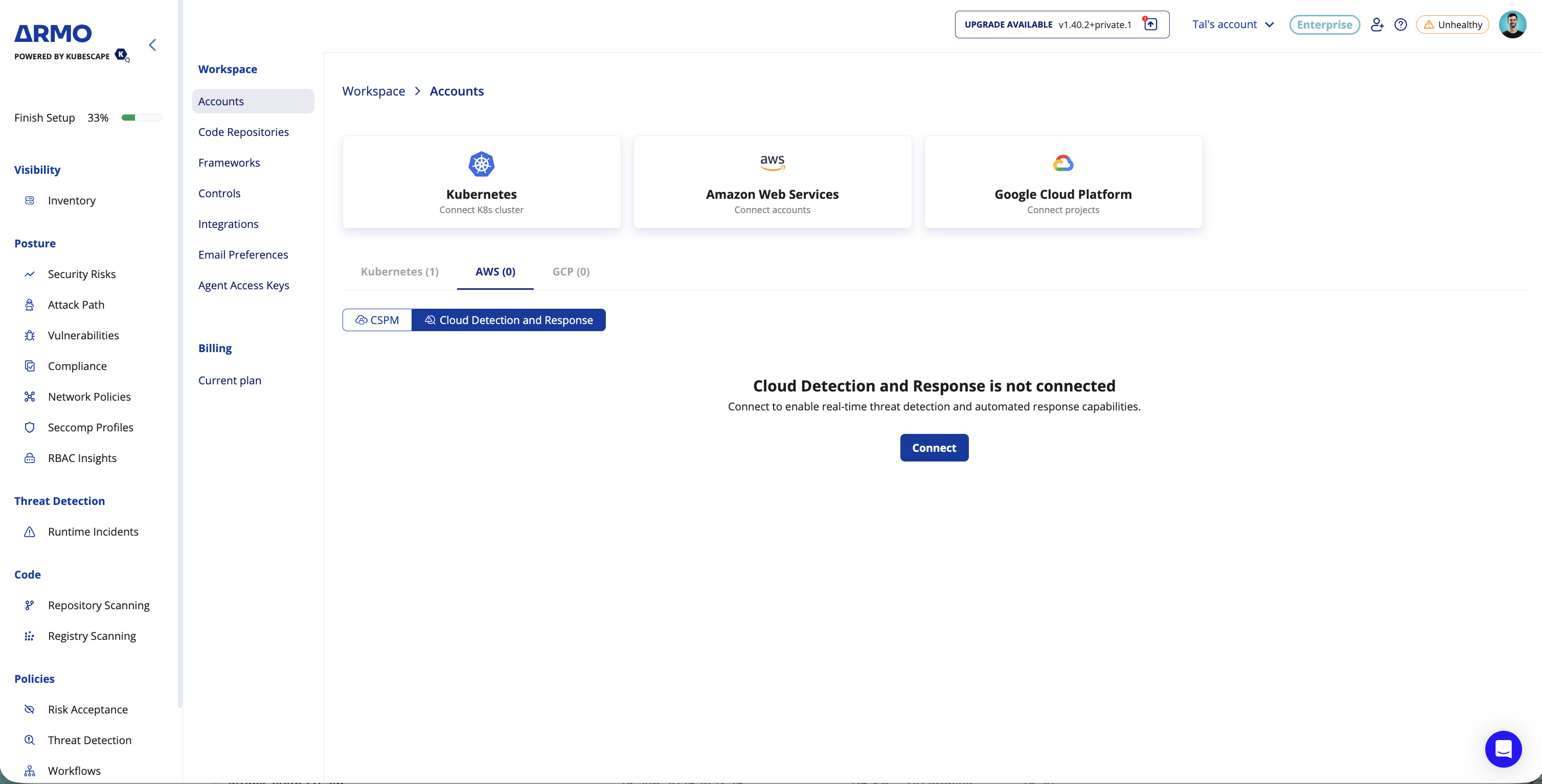

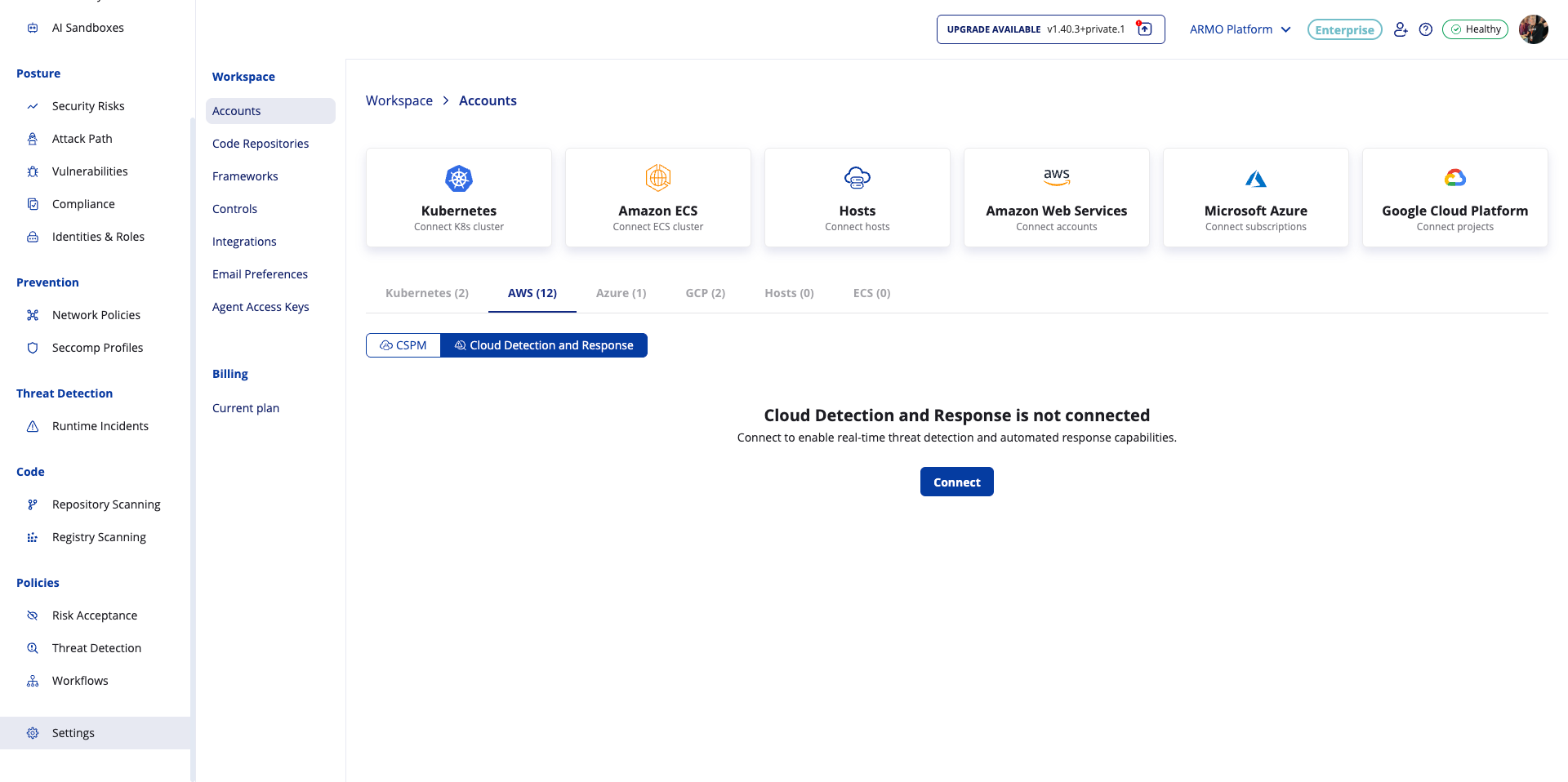

Step 1: Start the AWS CDR connection in ARMO

1. In the ARMO Platform, go to Settings → Accounts.
2. Select the AWS tab.
3. Select Cloud Detection and Response.
4. Click Connect.

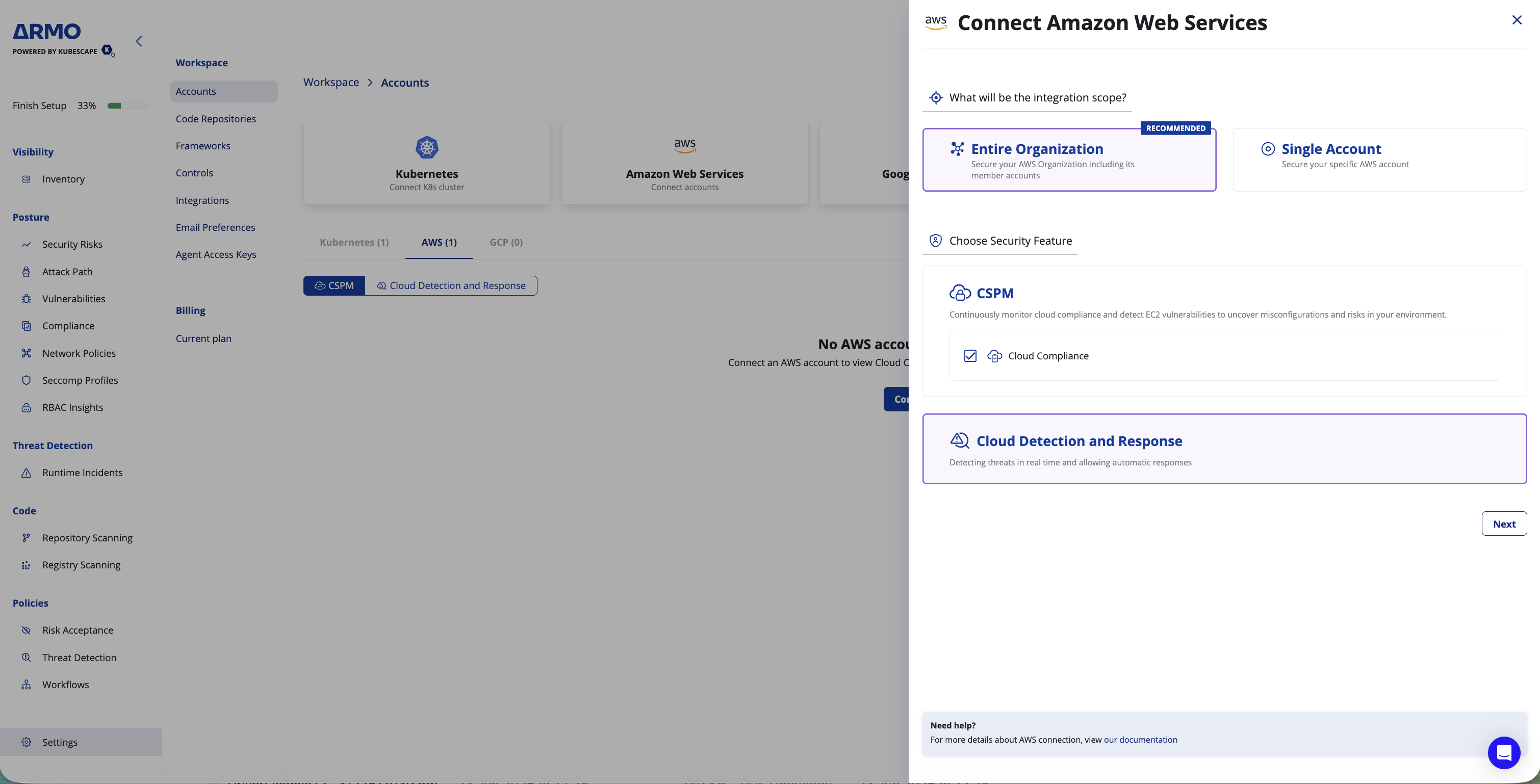

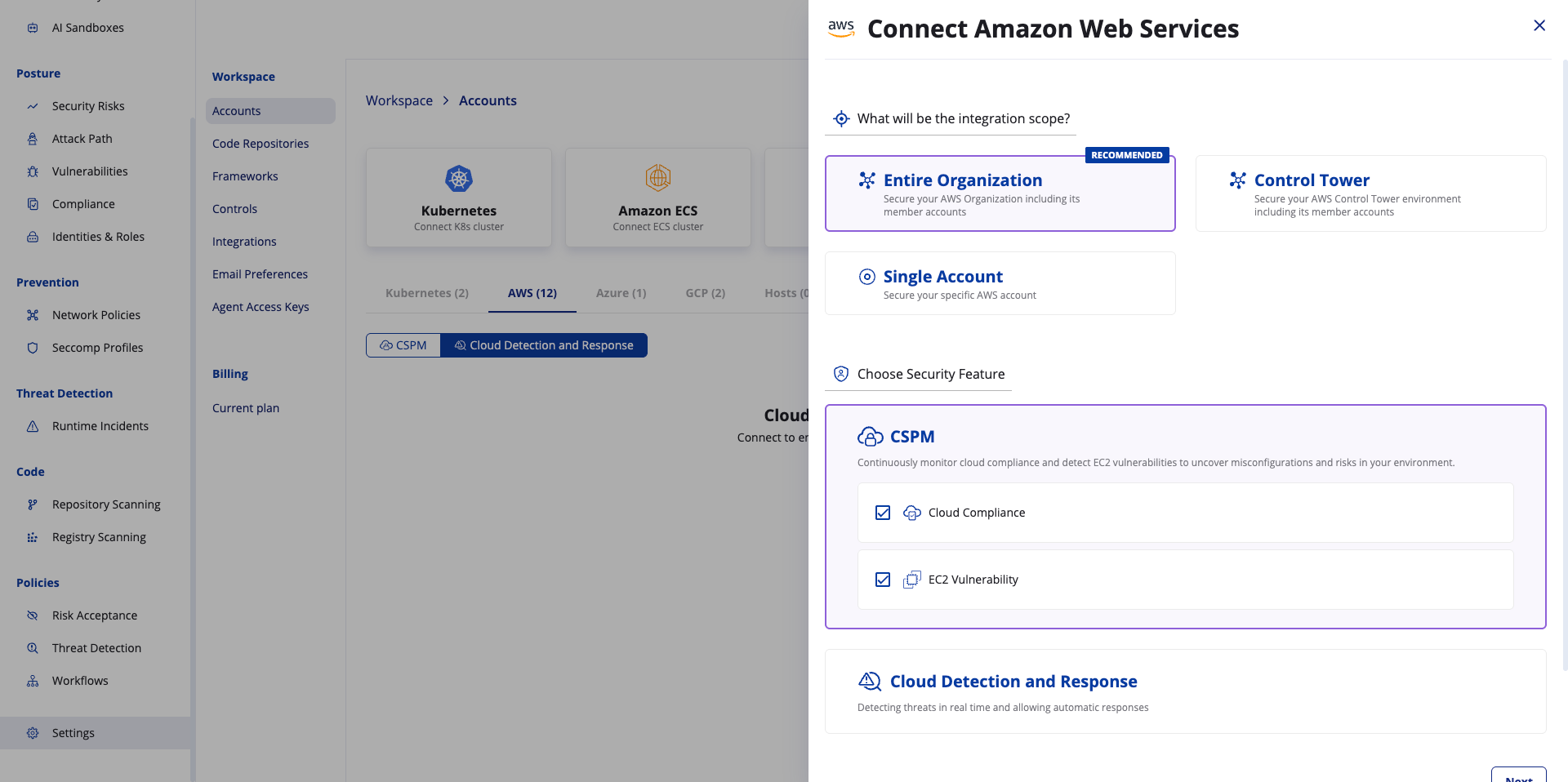

Step 2: Select the AWS integration scope and security feature

1. Under What will be the integration scope?, select between Entire Organization and Single Account.
2. Under Choose Security Feature, select Cloud Detection and Response.
3. Click Next.

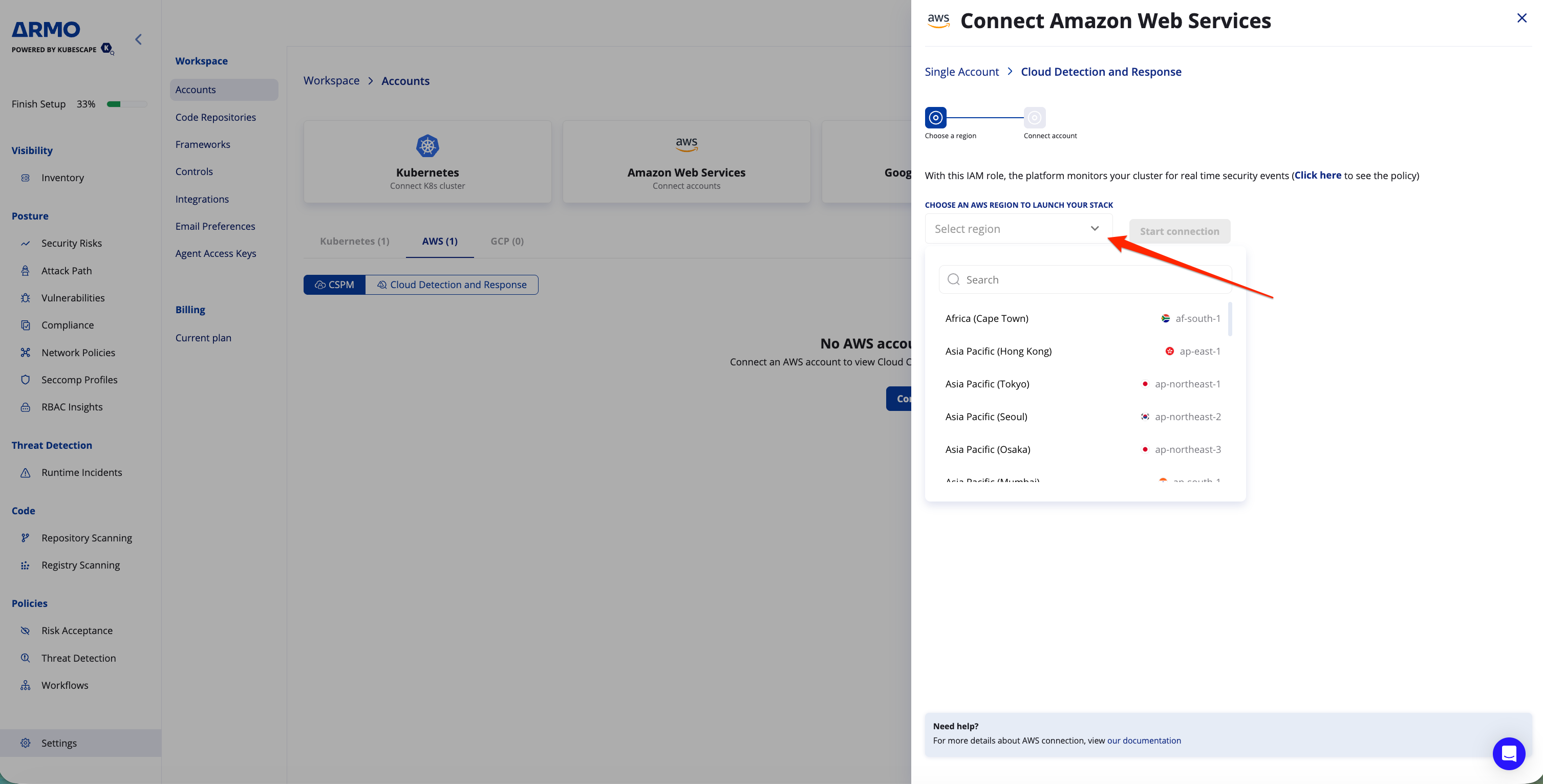

Step 3: Choose the AWS region

1. Select the AWS region where the CDR stack should be deployed.
2. Click Start connection.

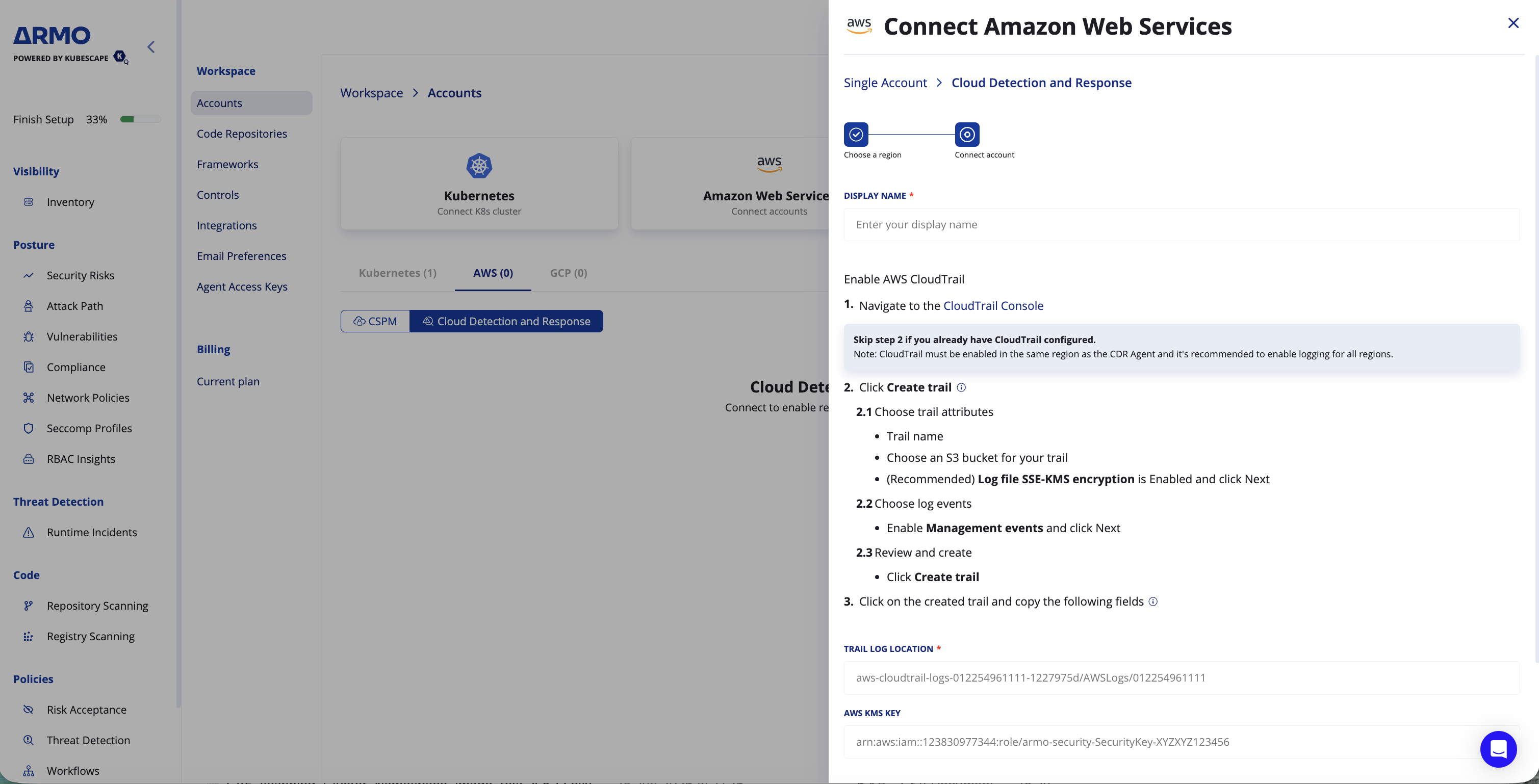

Step 4: Configure CloudTrail details

1. Enter a Display Name for the AWS account.
2. If CloudTrail is not already configured, follow the instructions in the wizard:
   • Open the CloudTrail Console.
   • Click Create trail.
   • Choose a trail name.
   • Choose an S3 bucket for the trail.
   • Enable Log file SSE-KMS encryption, if required by your environment.
   • Enable Management events.
   • Review and create the trail.
3. Copy the required values from the created CloudTrail trail.
4. In the ARMO wizard, enter:
   • Trail Log Location
   • AWS KMS Key, if applicable
     If your CloudTrail logs are encrypted with SSE-KMS, enter the KMS key ARN used to encrypt the CloudTrail log files.

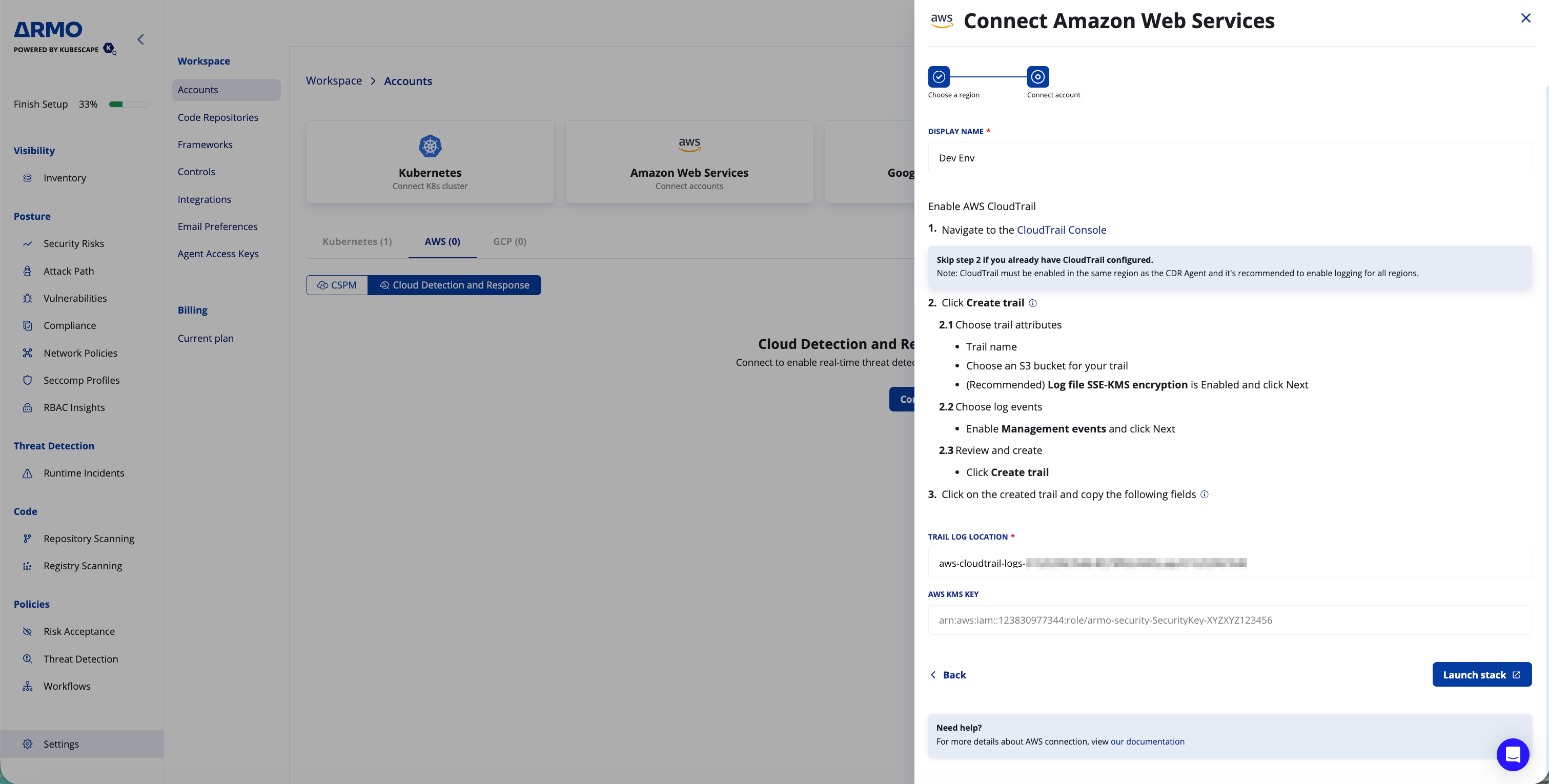

Step 5: Launch the CloudFormation stack

After entering the required CloudTrail details, click Launch stack.

This opens the AWS CloudFormation console with the ARMO CDR stack template pre-loaded.

Step 6: Create the CloudFormation stack in AWS

In the AWS CloudFormation Quick create stack page:

1. Review the template details.
2. Review or update the stack name.
3. Review the pre-filled parameters, such as:
   • AccessKey
   • AccountID
   • BucketAccountId, if the CloudTrail S3 bucket is located in a different AWS account

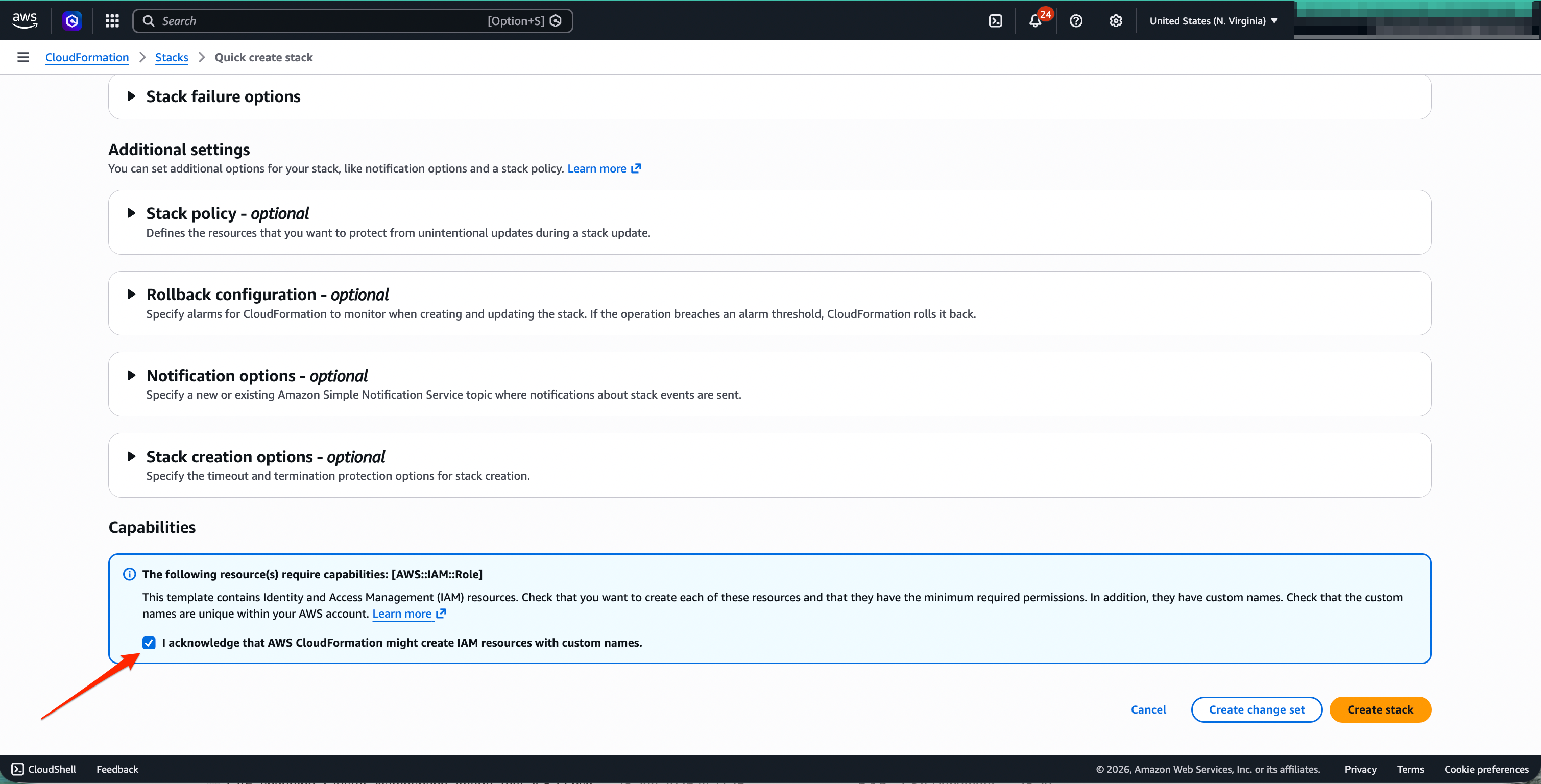

4. Scroll to the Capabilities section.
5. Select I acknowledge that AWS CloudFormation might create IAM resources with custom names.
6. Click Create stack.

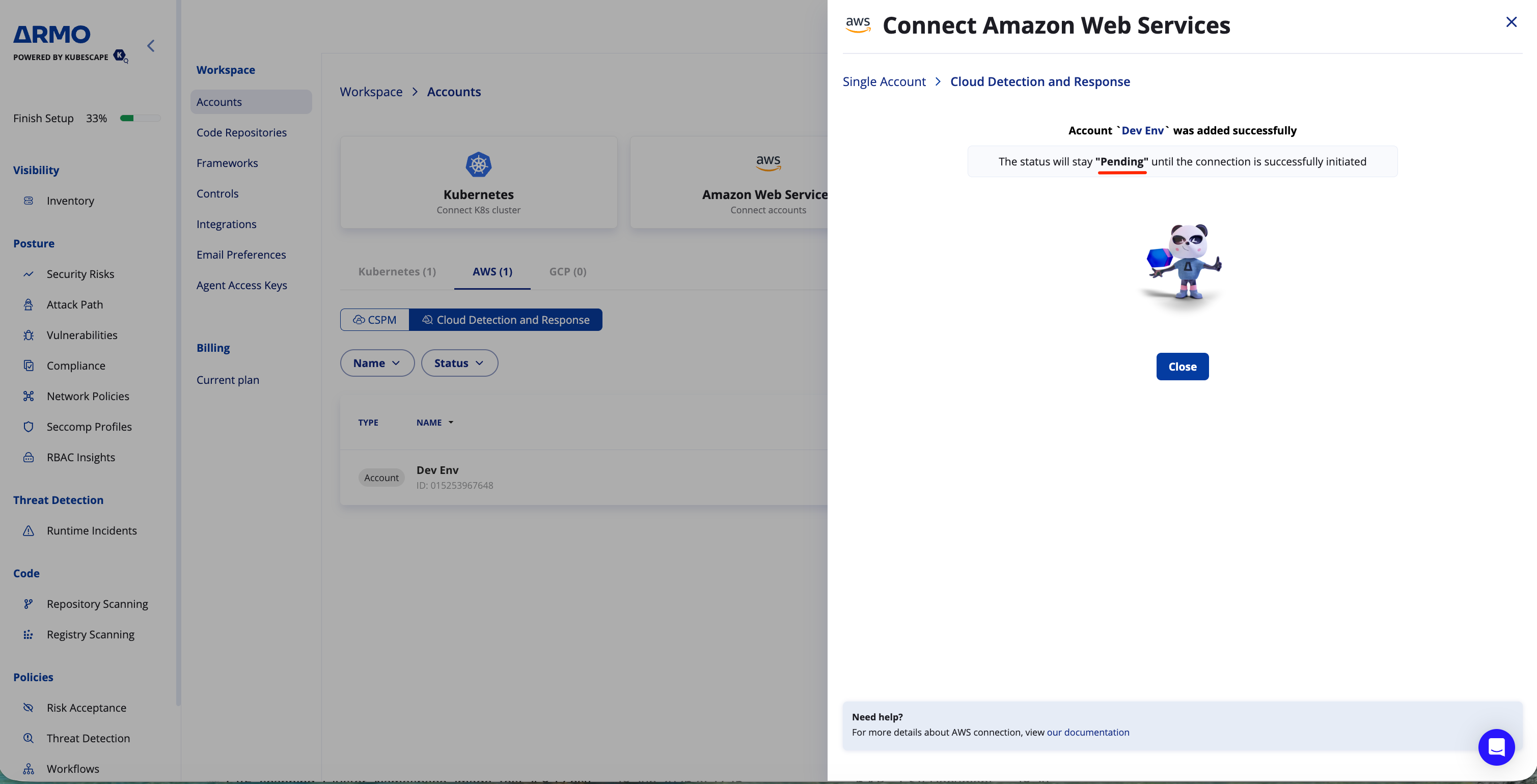

Step 7: Wait for the connection to complete

After launching the stack, return to the ARMO wizard.

The account is added to ARMO, but the status may remain Pending until the CloudFormation stack is created successfully and the connection is initiated.

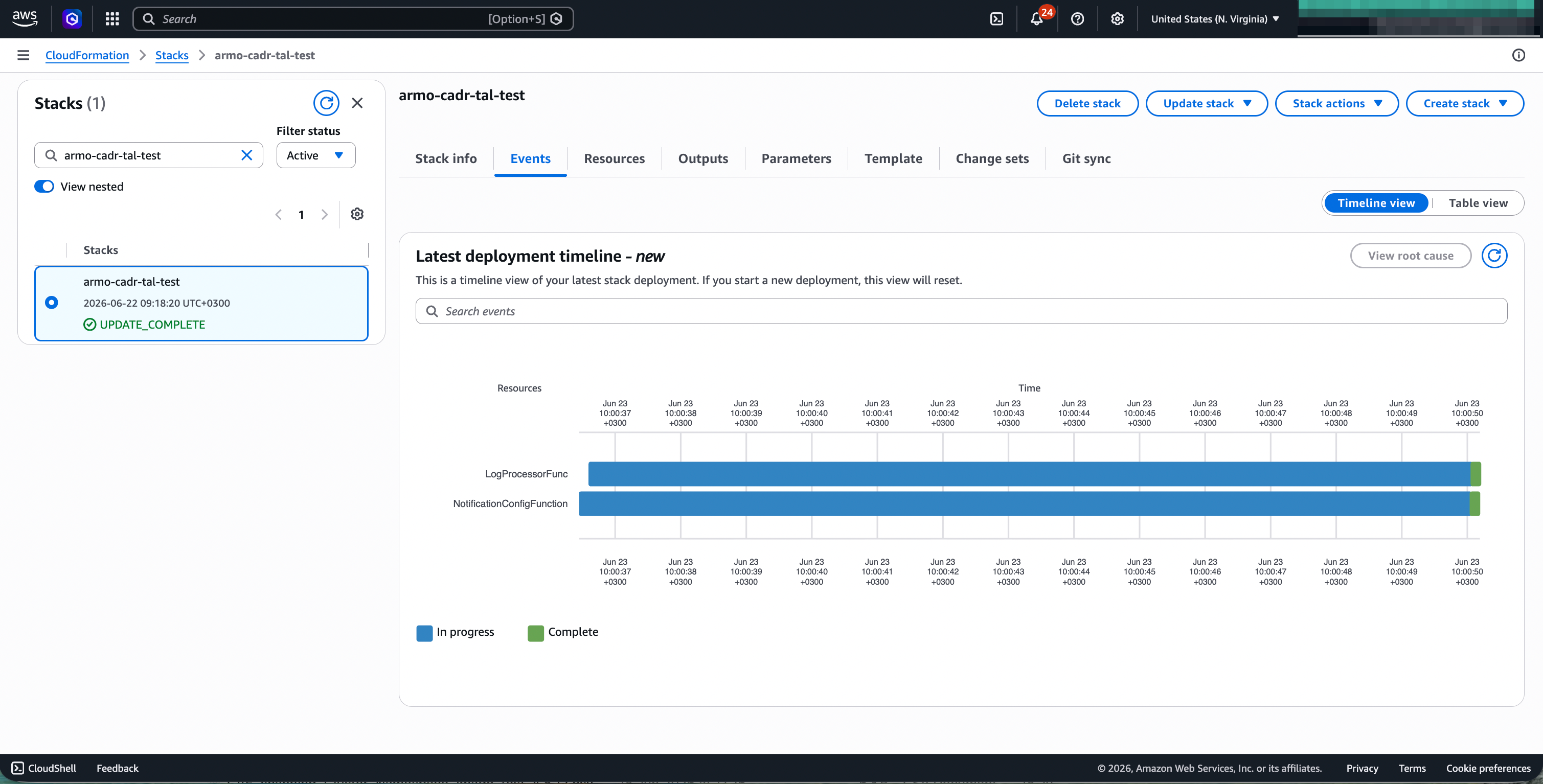

Step 8: Verify the CloudFormation stack

In AWS CloudFormation, open the ARMO CDR stack and verify that the stack status is complete.

For a new deployment, the expected status is CREATE_COMPLETE. If the stack was updated, the status may appear as UPDATE_COMPLETE.

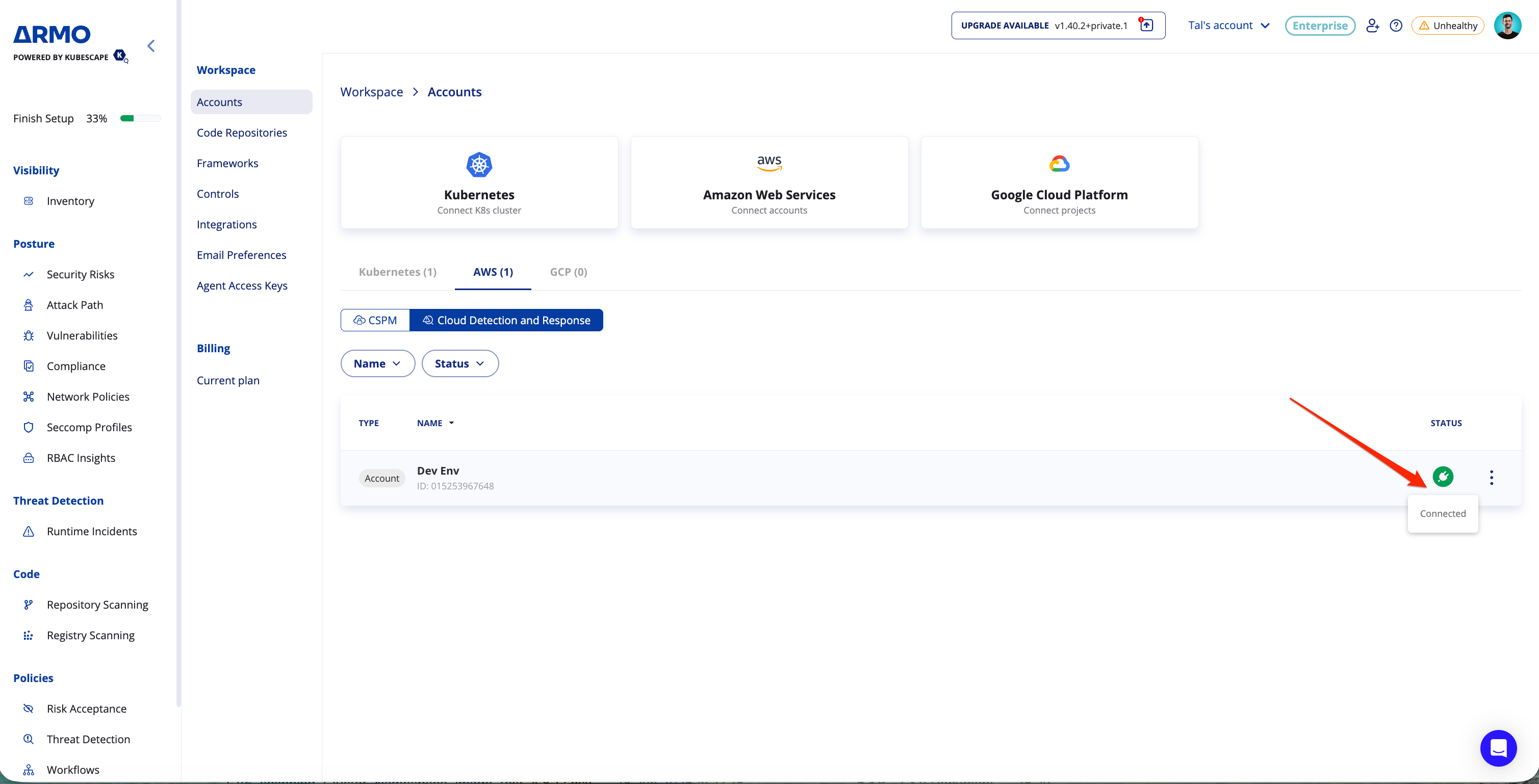

Step 9: Verify the connection in ARMO

Return to Settings → Accounts → AWS → Cloud Detection and Response.

The AWS account should appear with a Connected status.

AWS Account Scope

AWS CDR can be connected at either the organization level or for a single AWS account.

The onboarding flow is similar for both options. Select Entire Organization for broader coverage across multiple AWS accounts, or Single Account when you want to connect one account at a time.

Connection Status

Permissions Reference

The CloudFormation stack creates the AWS resources required to process CloudTrail logs and send matched alerts to ARMO.

ARMO does not require direct administrative access to your AWS workloads. The stack is used to process CloudTrail events and report matched security alerts.

After Onboarding

Once AWS CDR is connected:

• New CloudTrail events are evaluated continuously.
• Matched detections appear under Runtime Incidents.
• Incidents include the triggering event, the identity involved, and the affected AWS resource.
• Detection rules can be tuned, disabled, or extended under Policies → Threat Detection.
• Workflows can be used to route incidents to alerting, SIEM, or ticketing integrations.

Removing the Integration

To remove AWS CDR:

1. In the ARMO Platform, go to Settings → Accounts → AWS.
2. Open the menu for the connected AWS account.
3. Disable Cloud Detection and Response or disconnect the account.
4. In AWS CloudFormation, delete the ARMO CDR stack.
5. If you created a dedicated CloudTrail trail only for ARMO CDR, remove it according to your organization's logging policy.

Delete the CloudFormation stack before disconnecting the account in ARMO. Once the account is disconnected, the access key baked into the stack is revoked and any alerts the stack still sends are rejected.

Deleting the CloudFormation stack removes the ARMO CDR resources created by the template. Existing CloudTrail trails or S3 buckets that were not created by the stack should be reviewed separately before deletion.

Troubleshooting
